S-S Electrodes

Stainless Steel Electrodes

S309L

AWS A5.4 / ASME SFA5.4 ER309L-16

JIS Z3221 D309L-16

  Applications

Welding of 22% Cr-12% Ni steel. Welding of dissimilar metals and building-up welding of stainless steel on carbon steel or low alloy steel.

  Usage Specifications

S309L-16 is a lime-titania type electrode with excellent usability. The all-weld metal contains extra low carbon and high quality of delta ferrite. It’s heat and corrosion resistibility are also good.

  Welding Position                                                         Welding Current                                     Usage Notes

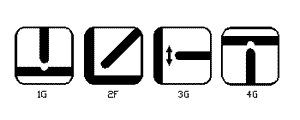

Welding Position Guide 300x120

   Dry the electrodes at 350'C for 60 minutes before use.

   Keep the ARC length as short as possible.

AC or DC +

   In case of clad steel welding, pay attention to the degree of penetration into the base metal.

 Typical Mechanical Composition of All-Weld Metal (%)

C

Si

Mn

P

S

Cr

Ni

0.02

0.76

1.30

0.023

0.019

22.9

12.7

 Typical Mechanical Properties of All-Weld Metal

T.S N/mmSq

EL.(%)

563

43.0

 Available Sizes & Recommended Currents ( Amps )

Code

Current

Pack Size

Carton Size

S309L26

45 ~ 85

2.5 Kg

10 Kg

S306L32

65 ~ 110

2.5 Kg

10 Kg

S312.16

AWS A5.4 / ASME SFA5.4 ER312-16

JIS Z3221 D312-16

  Applications

Welding of 29% Cr-9% Ni steel. Bond welding of dissimilar metals such as stainless steel, carbon steel and low alloy steel. where high strength is needed..

  Usage Specifications

S312-16 is a lime-titania type of electrode which has excellent usability and weld ability. Owing to the austenite structure containing large amounts of ferrite. S312-16 has good crack resistibility and can offer a excellent buffer against outer stress.

  Welding Position                                                         Welding Current                                     Usage Notes

Welding Position Guide 300x120

   Dry the electrodes at 350'C for 60 minutes before use.

   Keep the ARC length as short as possible.

AC or DC +

   Keep the current as low as possible.

   Preheat the base metal to over 200'C to prevent cracking when welding high alloy steel such as tool steel.

 Typical Mechanical Composition of All-Weld Metal (%)

C

Si

Mn

P

S

Cr

Ni

0.11

0.49

1.41

0.021

0.013

29.5

9.5

 Typical Mechanical Properties of All-Weld Metal

T.S N/mmSq

EL.(%)

803

22.0

 Available Sizes & Recommended Currents ( Amps )

Code

Current

Pack Size

Carton Size

S312L26

45 ~ 85

2.5 Kg

10 Kg

S312L32

65 ~ 115

2.5 Kg

10 Kg

S316L.16N

AWS A5.4 / ASME SFA5.4 ER316L-16

JIS Z3221 D316L-16

  Applications

Welding of extra low carbon 18% Cr - 12% Ni - 2% Mo ( 316L Stainless Steel )

  Usage Specifications

S316L-16N is a lime-titania type of electrode. As the all-weld metal has austenite structure containing ferrite the crack resistibility is good. It has an excellent resistibility to inter crystalline corrosion and heat resistance is good.

Welding Position Guide 300x120

   Dry the electrodes at 350'C for 60 minutes before use.

   Remove all dirt such as oil & dust from the material.

AC or DC +

   Weaving width should be within two and a half times of the electrode diameter.

 Typical Mechanical Composition of All-Weld Metal (%)

C

Si

Mn

P

S

Cr

Ni

Mo

0.02

0.75

1.10

0.032

0.015

18.5

11.9

2.4

 Typical Mechanical Properties of All-Weld Metal

T.S N/mmSq

EL.(%)

557

45.2

 Available Sizes & Recommended Currents ( Amps )

Code

Current

Pack Size

Carton Size

S316L26

45 ~ 85

2.5 Kg

10 Kg

S312L32

65 ~ 115

2.5 Kg

10 Kg

S312L40

85 ~ 150

2.5 Kg

10 Kg
